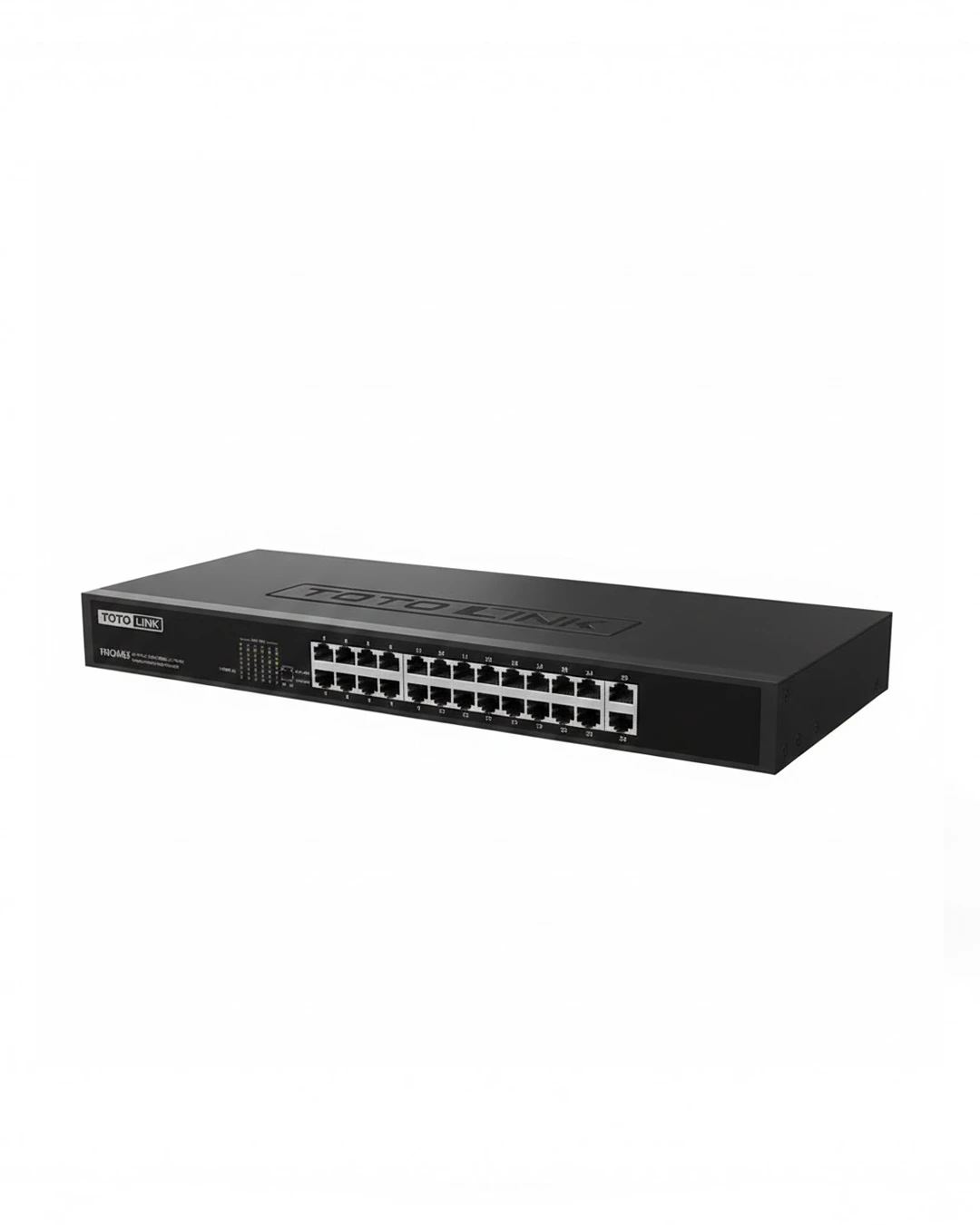

TotoLink SW24G2

Description

Technical Specifications for the TotoLink SW24G2 Switch

🔹 Type : Unmanaged Network Switch
🔹 Number of Ports
• 24 x RJ45 Gigabit Ethernet Ports
• Speed: 10/100/1000 Mbps per port
🔹 Performance
• Switching Capacity: Up to 48 Gbps
• Forwarding Rate: Up to 35.7 Mpps
• Supports Full Duplex
• Auto MDI/MDIX for all ports
🔹Standards and Protocols
• Compatible with:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x (Flow Control)
🔹 Ease of Use
• Plug & Play (No Setup Required)
• No Software or Manual Adjustment Required
• Works Automatically Upon Plugging In
🔹 Design and Construction
• Sturdy Metal Construction
• Rackmount Design (19-inch Rackmount)
• Includes Mounting Brackets
🔹 Cooling
• Fanless passive cooling system
• Quiet operation suitable for offices and server rooms
🔹 Power Consumption
• Energy efficient
• Supports Green Ethernet technology to reduce power consumption
🔹 Power Supply
• Built-in internal power supply
• Operating voltage: AC 100–240V / 50–60Hz
🔹 Reliability
• Stable 24/7 operation
• Suitable for continuous operations and infrastructure
🔹 Operating Environment
• Temperature: 0°C to 40°C
• Humidity: 10% to 90% (non-condensing)
🔹 Applications
✔ Businesses and institutions
✔ Data centers
✔ Hotels and hospitals
✔ Schools and universities
✔ Factories and warehouses
✔ Surveillance and camera networks
